เครื่องตัดแก๊สตามราง รุ่น KI-12 MAX 1 พร้อมหัวตัด 1หัว

Oxy-Fuel Cutter Mod. KI-12 MAX 1 complete with 1pc Head

Quick Overview

สามารถตัดเหล็กหนา 6-100mm ตัวเครื่องทำจากอลูมิเนียมคุณภาพสูงแข็งแรงทนทาน ความเร็วในการตัด 150-800mm/min

  • Power : AC220V 50Hz
  • Cutting Thickness : 6 - 100mm
  • Cutting Speed : 150 - 800mm/min
ราคาปกติ ฿33,000.00 /เครื่อง ราคาพิเศษ ฿26,400.00 /เครื่อง
ลด 20%
(ราคาสินค้ารวมภาษีมูลค่าเพิ่มแล้ว)
ราคารวมค่าขนส่งแล้ว
SKU
WDGAGCCUTMAX1
มีสินค้า
เหลือสินค้าอีก 18 ชิ้น

รายละเอียด

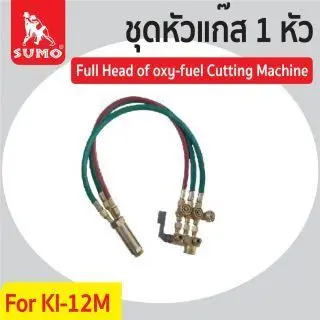

เครื่องตัดแก๊สตามราง รุ่น KI-12 MAX 1 พร้อมหัวตัด 1หัว

Oxy-Fuel Cutter Model KI-12 MAX 1 complete with 1pc Head







Component





Features&Benefits

  • Superior heat-proof for normal portable cutting machines
  • Reliable speed control Readable speed with digital gauge of speed
  • Easily controllable clutch
  • Application for linear, circular, bevel cutting
  • Extendable line track
  • Adjustable radius bar for circle cutting



Travelling carriage

  • Not affected by intense heat and fluctuating voltage, the maximun driving mechanism ensures steady travelling. Speed Control Mechanism of KC-12 MAX has adopted an exclusive Double Cone Stepless Speed control system (See the drawing), which functions with a condendor motor rotating at regular speed to prevent heat and voltage problems from occurring. No reduction gear is employed in the mechanism. Therefore, any knocking from backlash, noise or vibration does not take place. With entire use of heat-resisting grease, high temperature slodering and teflon wiring, heat protection is considered perfect and durable for long continuous operation, In prolongs the service life of bearings and maintains the "maximum state" for a long period of time.







Optional accessories

  • Straight rail Each track of 1.8 (72") long is extensible to the requirement.
  • Circle cutting attachment Recommended for cutting circles of large diameter: Ø50~2,400 mm

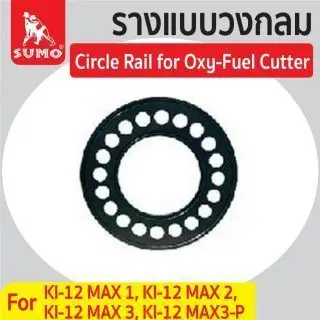

  • Circle cutting rail Recommended for cutting circles of comparatively large daimeter.
  • Cutting Range: Ø40~460 mm and  Ø1,150~2,400 mm

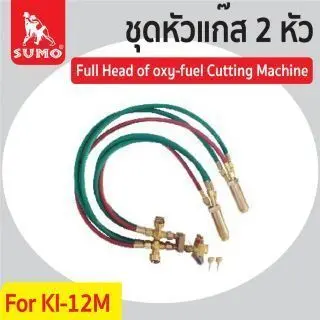

Multiple-torch option

  • Pipe arm (Long type 1,000mm)
  • Parallel cutting of wide products can be made with multiple torches





Specification

Model

KC-12M wasp

Bevels

0°to45°

Straight Cuts

1.8 m and multiples

Circle Cutting (Diameter)

40 to 2650 mm

Cutting Speed

80 to 800 mm/min (50HZ)
100 to 1000 mm/min (60HZ)

Torch

Injector Type to Suit Acetylene / LPG

Gas Connection (Fuel LH & Oxygen RH)

1/4" G;9/16" ect

Gross Weight

11.5kg W/1 torch
16kg W/2 torches.

Dimensions W/o rail

440x205x215 mm
