ลวดเชื่อมเหล็กหล่อ

ลวดเชื่อมเหล็กหล่อ Ni55 2.6mmx300mm SUMO

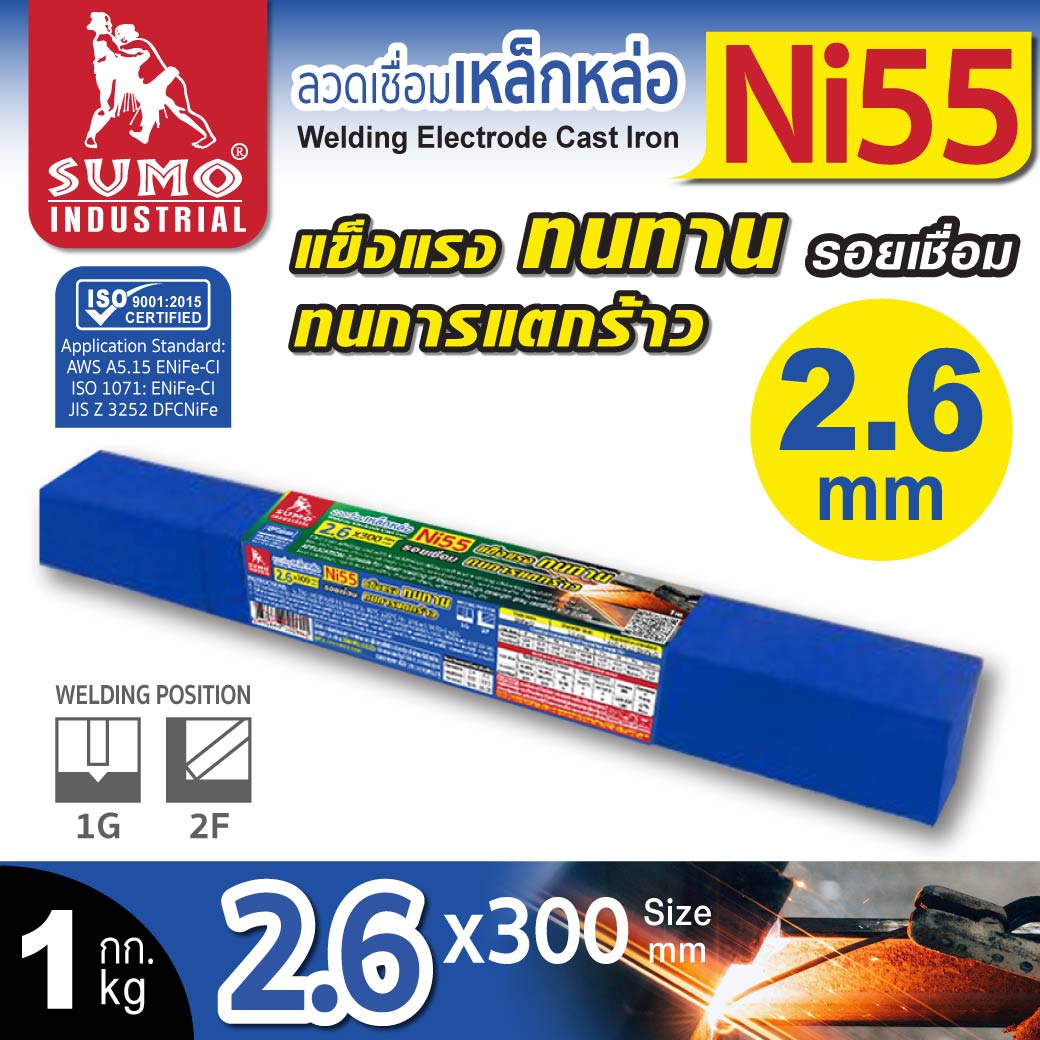

Welding Electrode Cast Iron Ni55 2.6mmx300mm SUMO

มาตรฐานคุณภาพ (Standard Compliance)

• ISO9001:2015
• Application Standard: AWS A5.15 ENiFe-CI
• ISO 1071: ENiFe-CI
• JIS Z 3252 DFCNiFe

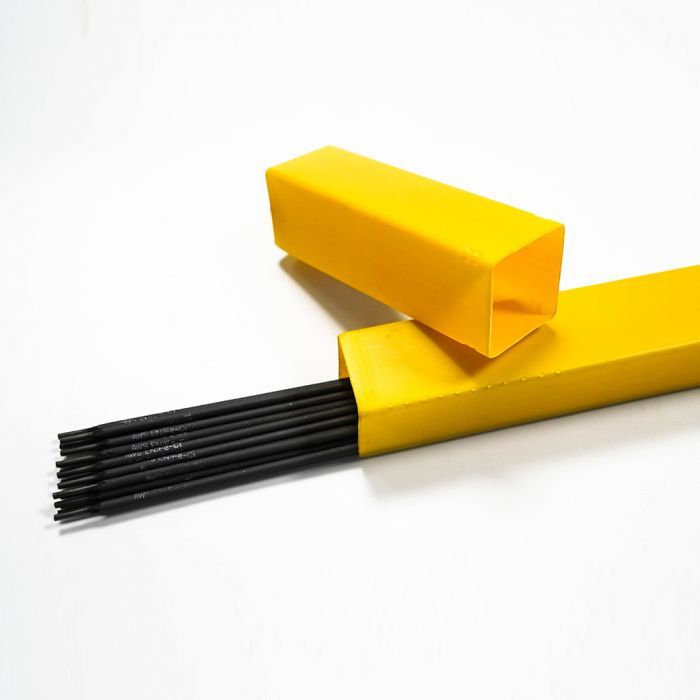

• Cast iron welding rod with a nickel-iron alloy core and a strong reducing graphite coating. Has the characteristics of high strength, good plasticity, and low linear expansion coefficient.

Application

• Suitable for repair welding of important high-strength gray castings and ductile iron castings, such as cylinders, engine seats, gears, rollers, etc.

Welding Position

•  1G and 2F

Instructions

1. The rod should be baked at 80°C-120°C for 1hours before use.
2. The surfaces to be welded must be cleaned away impurities of oil contamination, rust, moisture and so on.
3. When welding, hammering the weld joint to dispel stress around the welding region to avoid crack.
4. To increase ability of crack-resisting and machinable, small current is recommended, meanwhile could reduce impurities to permeate the weld seam from base metal.

 Size and Recommended Current (AC or DC+)
